Appliance Netgate

SG-1100

• RAM 1GB DDR
• CPU Dual Core 1.2GHz
• Disco 8GB
• NetWork Interfaces:
  • 1x Marvell 88E6141 networking switch
  • 3x GbE Ethernet (WAN/LAN/OPT)
  • 1x Mini PCIe slot (1)
• 1x USB 3.0
• 1x USB 2.0
• Mini USB (Port Console)

SG-2100

• RAM 4GB DDR4
• CPU Dual Core 1.2GHz
• Disco 8GB
• NetWork Interfaces:
  • 1 x 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo)
  • 4 x 1 Gigabit Ethernet LAN ports (Marvel 88E6141 Switch), LAN ports can
    be repurposed for additional WAN ports

• 1x USB 2.0
• Mini USB (Port Console)

SG-4200

• RAM 4GB LPDDR5
• CPU 4 Core 2.1GHz
• Disco 16GB
• NetWork Interfaces:
  • (4) 2.5 Gbps RJ-45 «direct» (unswitched) ethernet  LAN ports
• 1x USB 3.0.
• 1x auto-detect console port: «Cisco pinout» RJ45 + micro-USB (micro-USB cable included with each system)

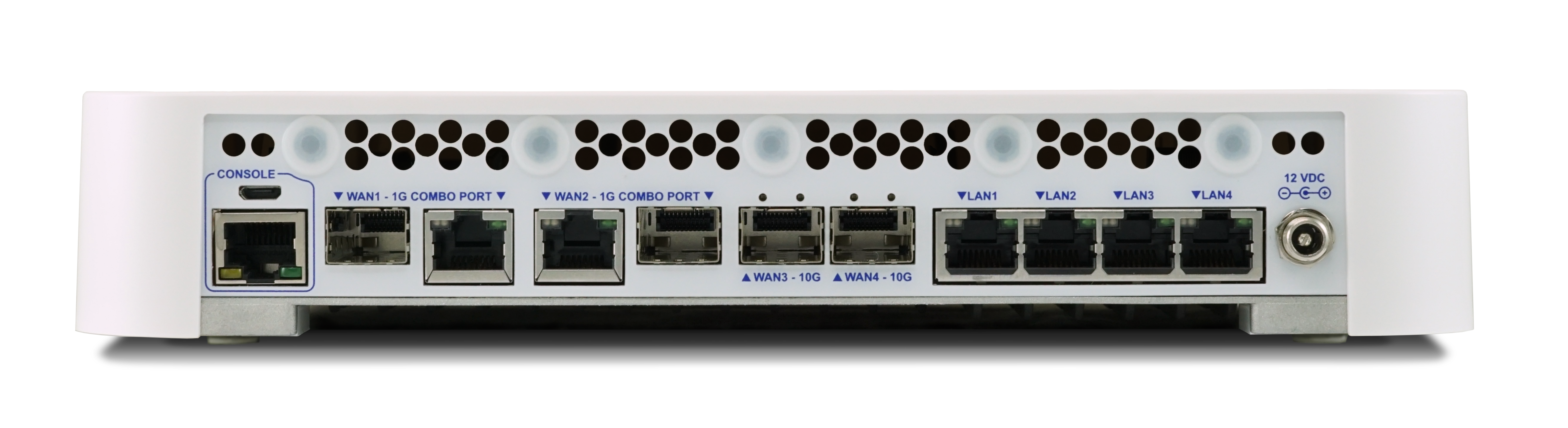

SG-6100

• RAM 8GB DDR4 2400 MHz
• CPU 4 Core Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
• Disco 16GB eMMC Flash on board
• NetWork Interfaces:
  • (2) 10 Gbps SFP+ cage WAN ports
  • (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) Combo WAN ports
  • (4) 2.5 Gbps RJ-45 «direct» (unswitched) ethernet LAN ports
• 2x USB 3.0
• 1 x auto-detect console port: «Cisco pinout» RJ45 + micro-USB (micro-USB cable
  included with each system)

SG-8200

• RAM 16GB DDR4
• CPU 8 Core Intel® Atom® 2.4 GHz (Denverton family)
• Disco 128GB SSD.
• NetWork Interfaces:
  • (2) 10 Gbps SFP+ WAN ports
  • (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports
  • (4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN) Intel i226 ports
• 2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack
• 1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)

XG-7100 1U

• 8 GB DDR4 (expandable to 24GB via SODIMM)
• CPU 4 Cores 2.2GHz
• Disco32GB
• NetWork Interfaces:
  • 2x 10GbE Intel x553 SFP+ Ports
  • 8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps (2x 2.5 Gbps) to Intel SoC for LAN
  • Virtual Machine Device Queues reduce I/O overhead
  • Note: Copper SFP/SFP+ not supported.
• 1x USB 3.0
• 2x USB 2.0
• Mini USB (Port Console)

XG-1537 1U

• 8 GB DDR4 RDIMM (expandable to 32GB ECC RDIMM)
• CPU 8 Cores 1.7GHz
• Storage Options:
  • 256GB M.2 SSD
    2x 150GB 2.5″ SSD RAID 1
• NetWork Interfaces:
  • Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet.
  • Dual LAN via SoC 10GbE SFP+
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GbE (SFP+), 100BASE-TX, and 1000BASE-T (RJ45)
• NetWork Expansion Options:
  • 4-Port Intel GbE
  • 2-port Chelsio SFP+ Expansion
• 2x USB 3.0
• VGA (Port Console)

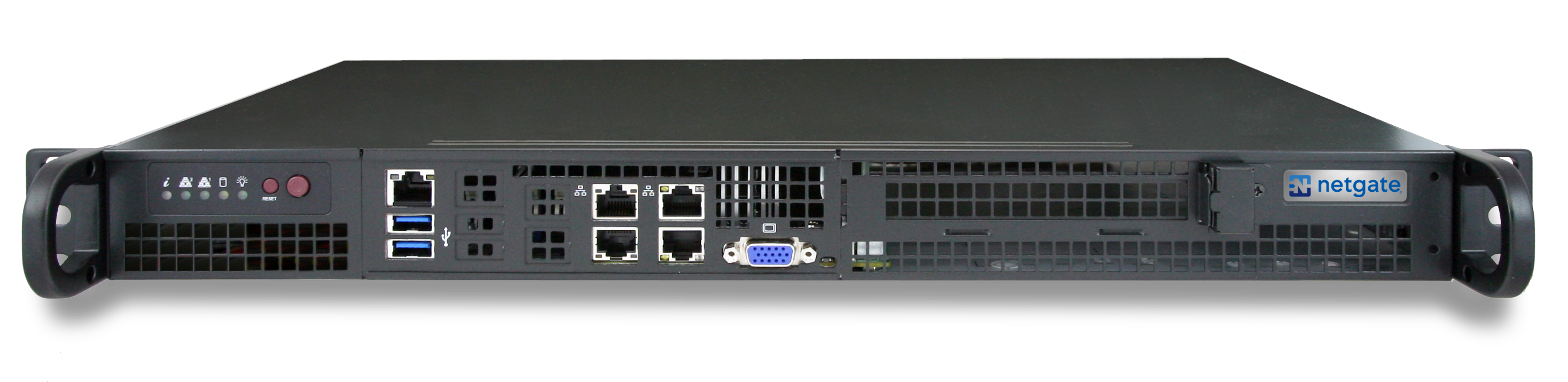

XG-1541 1U

• 32 GB DDR4 UDIMM
• CPU 8 Cores 2.1GHz
• Storage Options:
  • 256GB M.2 SSD
    2x 256GB 2.5″ SSD RAID 1
• NetWork Interfaces:
  • Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
  • Dual LAN via SoC 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
• NetWork Expansion Options:
  • 4-Port Intel GbE
  • 2-port Chelsio SFP+ Expansion
• 2x USB 3.0
• VGA (Port Console)

XG-7100 1U HA

(Alta Disponibilidad)

• 8 GB DDR4 (expandable to 24GB via SODIMM)
• CPU 4 Cores 2.2GHz
• Disco32GB
• NetWork Interfaces:
  • 2x 10GbE Intel x553 SFP+ Ports
  • 8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps (2x 2.5 Gbps) to Intel SoC for LAN
  • Virtual Machine Device Queues reduce I/O overhead
  • Note: Copper SFP/SFP+ not supported.
• 1x USB 3.0
• 2x USB 2.0
• Mini USB (Port Console)

XG-1537 1U HA

(Alta Disponibilidad)

• 8 GB DDR4 RDIMM (expandable to 32GB ECC RDIMM)
• CPU 8 Cores 1.7GHz
• Storage Options:
  • 256GB M.2 SSD
    2x 150GB 2.5″ SSD RAID 1
• NetWork Interfaces:
  • Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet.
  • Dual LAN via SoC 10GbE SFP+
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GbE (SFP+), 100BASE-TX, and 1000BASE-T (RJ45)
• NetWork Expansion Options:
  • 4-Port Intel GbE
  • 2-port Chelsio SFP+ Expansion
• 2x USB 3.0
• VGA (Port Console)

XG-1541 1U HA

(Alta Disponibilidad)

• 32 GB DDR4 UDIMM
• CPU 8 Cores 2.1GHz
• Storage Options:
  • 256GB M.2 SSD
    2x 256GB 2.5″ SSD RAID 1
• NetWork Interfaces:
  • Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
  • Dual LAN via SoC 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
• NetWork Expansion Options:
  • 4-Port Intel GbE
  • 2-port Chelsio SFP+ Expansion
• 2x USB 3.0
• VGA (Port Console)
